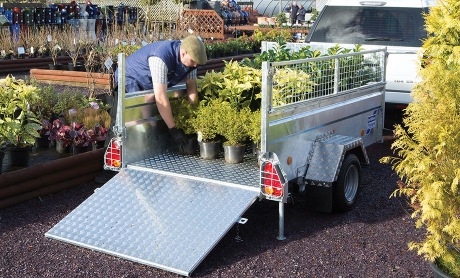

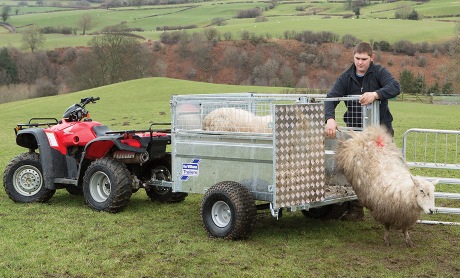

The Q Range trailer is a compact, convenient but robust trailer designed with both the agricultural and domestic user in mind. On road they can be pulled by the family car whilst off road they can be pulled by a quad bike or gator.
They have a GVW of 750kg and can cope with different uses for the domestic, commercial or farmyard appliances.
The trailer is built using Ifor Williams leaf spring suspension along with all over galvanised chassis and body.
Q5e off-road has two tyre options available: either flotation tyres or deeper tread depth knobbly tyres. The latter are excellent in muddy conditions or over difficult terrain more easily reached by off-road vehicles.
Options on these trailers include internal partition, stock ramp door, hinged mesh or hinged solid sides.
Model dimensions can be viewed in the table below. For more detailed dimensions, please download the product brochure.
Off-road trailers are not fitted with mudguards or lights. This means they are solely for off-road or off-highway use.
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| Q5e Off Road | 20.5 x 8-10 | 750kg | 185kg | 1.51m | 1.03m | 2.6m | 1.52m |
| Q5e Off Road | 22 x 11-8* | 350kg | 185kg | 1.51m | 1.03m | 2.6m | 1.62m |
| Q5e Road | 20.5 x 8-10 | 750kg | 200kg | 1.51m | 1.02m | 2.6m | 1.52m |
| Q6e Off Road | 20.5 x 8-10 | 750kg | 235kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q6e Road | 20.5 x 8-10 | 750kg | 250kg | 1.95m | 1.22m | 3.02m | 1.71m |
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
-

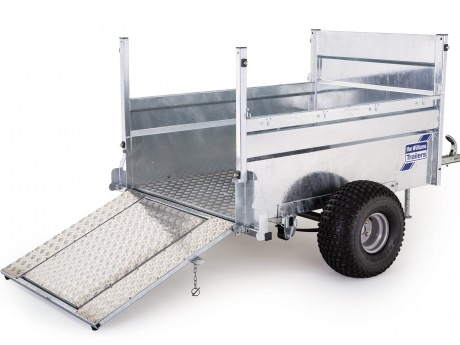

- Stock Ramp
-

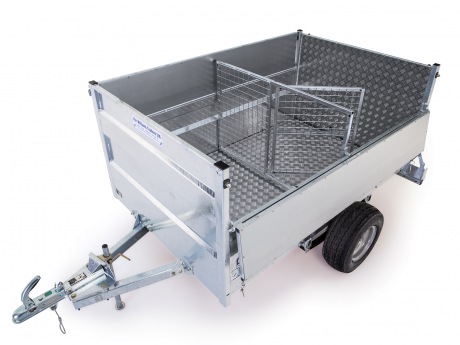

- Internal Livestock Partition
-

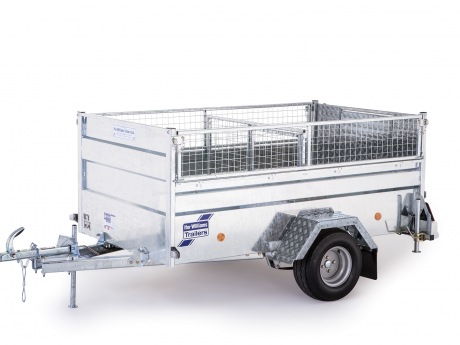

- Hinged Mesh Sides
-

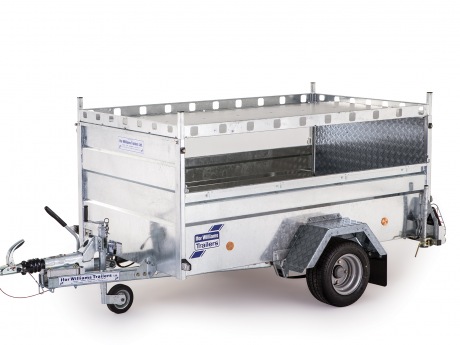

- Roof and Rack
-

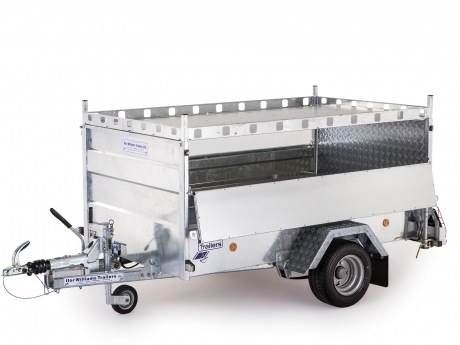

- Hinged Solid Sides
