From the smallest LT85 to the largest LM208, all Flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension.

The Flatbed trailer range is normally supplied with twin axles. Tri-axle options are available on our LM6 series models in lengths over 12’.

With the addition of a winch, rear prop stands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.

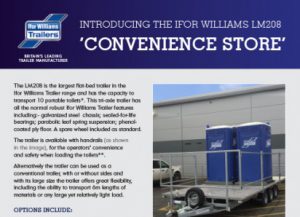

A new addition to the range is the LM208, this is the largest Flatbed trailer. The LM208 tri-axle trailer has all the normal features of an Ifor Williams Trailer but has the capacity to transport up to 10 portable toilets. This trailer is available with handrails for the operators’ convenience and safety when loading. Alternatively the trailer can be used as a conventional trailer, with or without sides and with its large size the trailer offers great flexibility, including the ability to transport 6m lengths of materials or any large yet relatively light load.

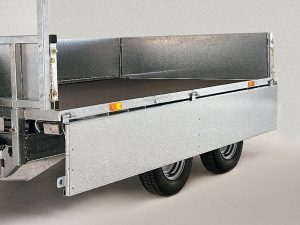

Tough, adaptable and easy to maintain, all models are fitted with a tough resin-coated plywood platform, spare wheel and jockey wheel as standard. An option of aluminium treadplate covering is available, along with recessed lashing rings. Trailers can be further enhanced with accessories such as a headboard, ladder rack, dropsides or meshside extensions. Click on the Accessories tab for further details of available accessories.

The flatbed range is offered in width options ranging from 1.52m/5’ to 2.29m/7’6″ and length options from 2.44m/8’ to 5.49m/18’.

The maximum gross weight for the LT model is 2000kg, whilst the heavier LM models offer between 2700kg and 3500kg.

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
LT85 145/70R13C 2000kg 450kg 2.44m/8′ 1.52m/5′ 3.80m 1.60m
LT105 145/70R13C 2000kg 510kg 3.01m/9’9″ 1.68m/5’5″ 4.35m 1.75m
LT125 145/70R13C 2000kg 565kg 3.62m/11’9″ 1.68m/5’5″ 5.00m 1.75m
LT106 145/70R13C 2000kg 555kg 3.01m/9’9″ 1.98m/6’5″ 4.35m 2.10m
LT126 145/70R13C 2000kg 615kg 3.62m/11’9″ 1.98m/6’5″ 5.00m 2.10m
LT146 145/70R13C 2000kg 660kg 4.23m/13’9″ 1.98m/6’5″ 5.60m 2.10m
LM85 195/60R12C 2700kg 495kg 2.44/8′ 1.52m/5′ 3.80m 1.60m
LM105 195/60R12C 2700kg 575kg 3.01m/9’9″ 1.68m/5’5″ 4.35m 1.75m
LM125 195/60R12C 2700kg 620kg 3.62m 1.68m 5.00m 1.75m
LM85 195/60R12C 3500kg 525kg 2.44m/8′ 1.52m/5′ 3.80m 1.60m
LM105 195/60R12C 3500kg 605kg 3.01m/9’9″ 1.68m/5’5″ 4.35m 1.75m
LM125 195/60R12C 3500kg 650kg 3.62m/11’9″ 1.68m/5’5″ 5.00m 1.75m
LM106 195/60R12C 3500kg 620kg 3.01m/9’9″ 1.98m/6’5″ 4.35m 2.10m
LM126 195/60R12C 3500kg 675kg 3.62m/11’9″ 1.98m/6’5″ 5.00m 2.10m
LM146 195/60R12C 3500kg 735kg 4.23m/13’9″ 1.98m/6’5″ 5.60m 2.10m
LM166 195/60R12C 3500kg 795kg 4.77m/15’6″ 1.98m/6’5″ 6.20m 2.10m
LM186 195/60R12C 3500kg 855kg 5.47m/17’9″ 1.98m/6’5″ 6.85m 2.10m
LM126T (Tri-Axle) 195/60R12C 3500kg 785kg 3.62m/11’9″ 1.98m/6’5″ 5.00m 2.10m
LM146T (Tri-Axle) 195/60R12C 3500kg 845kg 4.23m/13’9″ 1.98m/6’5″ 5.60m 2.10m
LM166T (Tri-Axle) 195/60R12C 3500kg 905kg 4.77m/15’6″ 1.98m/6’5″ 6.20m 2.10m
LM186T (Tri-Axle) 195/60R12C 3500kg 965kg 5.47m/17’9″ 1.98m/6’5″ 6.85m 2.10m
LM127 195/60R12C 3500kg 705kg 3.62m/11’9″ 2.25m/7’4″ 5.00m 2.30m
LM147 195/60R12C 3500kg 775kg 4.23m/13’9″ 2.25m/7’4″ 5.60m 2.30m
LM167 195/60R12C 3500kg 845kg 4.77m/15’6″ 2.25m/7’4″ 6.20m 2.30m
LM187 195/60R12C 3500kg 915kg 5.47m/17’9″ 2.25m/7’4″ 6.85m 2.30m
LM147T (Tri-Axle) 195/60R12C 3500kg 885kg 4.23m/13’9″ 2.25m/7’4″ 5.60m 2.30m
LM167T (Tri-Axle) 195/60R12C 3500kg 955kg 4.77m/15’6″ 2.25m/7’4″ 6.20m 2.30m
LM187T (Tri-Axle) 195/60R12C 3500kg 1025kg 5.47m/17’9″ 2.25m/7’4″ 6.85m 2.30m
LM208 (Tri-axle) 195/60R12C 3500kg 1276kg 6.1m/20’ 2.5m/8’2” 7.4m/24’2” 2.55m/8’3”


Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
